Available Finishes |
| |
|
| |
 |
| |
POLISHED BRASS |
| |
 |
| |
POLISHED LACQUERED |
| |
 |
| |
SATIN BRASS (LACQUERED) |
| |
 |
| |
SATIN NICKEL (S.S. FINISH) |
| |
 |
| |
CHROME PLATED |
| |
 |
| |
SATIN CHROME PLATED |
| |
 |
| |
ANTIQUE |
| |
 |
| |
BRONZE FINISH |
| |
 |
| |
GOLD PLATED |
| |
|
|
| |
|
|
| |
|

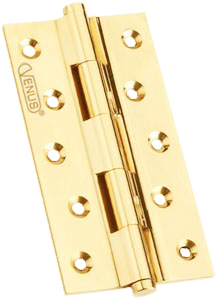

BRASS HINGES > RAILWAY HINGES WITH TIPS
| |
| |
| BRASS RAILWAY HINGES : WITH BUTTON TIPS AND GREASE |
| |
|
|
|
|
| CODE NO. |
SIZE IN INCH |
SIZE IN MM |
BARREL IN MM |
PIN DIA. MM |
| 05-001B |
4" x 1" x 1/8" |
101 x 57 x 2.7mm. |
10.00 |
5.00 |
| 05-002B |
5" x 1" x 1/8" |
127 x 57 x 2.7mm. |
10.00 |
5.00 |
| 05-003B |
6" x 1" x 1/8" |
127 x 57 x 2.7mm. |
10.00 |
5.00 |
| 05-004B |
4" x 1. 1/8" x 1/8" |
101 x 67 x 2.7mm. |
10.00 |
5.00 |
| 05-005B |
5" x 1. 1/8" x 1/8" |
127 x 67 x 2.7mm. |
10.00 |
5.00 |
| 05-006B |
6" x 1. 1/8" x 1/8" |
152 x 67 x 2.7mm. |
10.00 |
5.00 |
| 05-007B |
4" x 1.1/8" x 5/32" Ex. Heavy |
101 x 67 x 3.6mm. |
10.60 |
5.00 |
| 05-008B |
5" x 1.1/8" x 5/32" Ex. Heavy |
127 x 67 x 3.6mm. |
10.60 |
5.00 |
| 05-009B |
5" x 1.1/8" x 5/32" Ex. Heavy |
152 x 73 x 3.6mm. |
10.60 |
5.00 |
| 05-010B |
4" x 1.1/4" x 5/32" Ex. Heavy |
101 x 73 x 3.6mm. |
10.60 |
5.00 |
| 05-011B |
5" x 1.1/4" x 5/32" Ex. Heavy |
127 x 73 x 3.6mm. |
10.60 |
5.00 |
| 05-012B |
5" x 1.1/4" x 5/32" Ex. Heavy |
152 x 73 x 3.6mm. |
10.60 |
5.00 |
|
|
| |
|
|
